Camlock Technical Specification QUICK COUPLER HIC Manufactured UNIVERSAL Brand
Universal Camlocks ensures no separation of line pressure used widely in industries, namely, breweries, chemicals, dyes, fertilizers, inks, mining, petroleum, paper mills, textiles and other industrial establishments, in a way Camlock body is made from solid bar stock of aluminium/mild steel brass/SS304/SS316, or else body is made from castings of carbon steel WCB grade or I.S. 1030/gunmetal LG 2C grade / aluminium bronze AB2C grade / SS304 (cf 0.08) / SS316 (c. f. 0.08), cam arms is made from casting of SS304/SS316/ gunmetal / aluminium bronze, seal material of standard nitrile/silicon/hypalon/neoprene with end connections as per requirements, suitable to withstand working pressures from 100 psi to 500 psi and temperature from - 40 degree C to +350C with proper selection of body and seal materials.

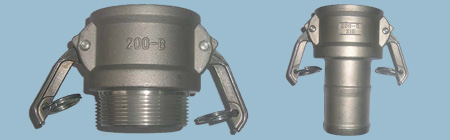

Camlock COUPLING Product Specification
 |
|

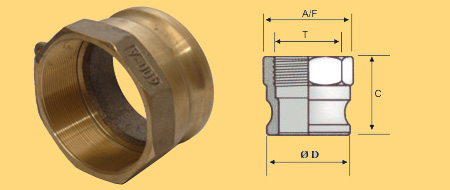

Camlock Female Adaptor A
Camlock Female Adaptor A
| Serial No. | Camlock Size | A/F | C | ØD |
| 1 | 1/2" | 25 | 40 | 22.7 |
| 2 | 3/4" | 33 | 43.6 | 32.1 |
| 3 | 1" | 38.5 | 48.1 | 36.7 |
| 4 | 1 1/4" | 48 | 55 | 45.5 |
| 5 | 1 1/2" | 54 | 55.5 | 53.4 |
| 6 | 2" | 66.5 | 62 | 63 |
| 7 | 2 1/2" | 80.5 | 86.3 | 75.8 |
| 8 | 3" | 96 | 70.2 | 91.5 |
| 9 | 4" | 130.5 | 79.9 | 119.5 |
| 10 | 5" | 155.5 | 80.9 | 145.5 |
| 11 | 6" | 183.5 | 94.1 | 176.3 |
| All dimensions are in mm ; dimensions subject to change without notice please. | ||||

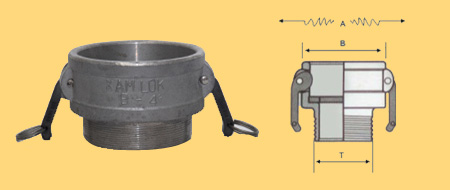

Camlock Male Coupler B
Camlock Male Coupler B
| Serial No. | Camlock Size | A | B | C |
| 1 | 1/2" | 119.4 | 54.7 | 54.1 |
| 2 | 3/4" | 113.0 | 53.0 | 49.3 |
| 3 | 1" | 133.1 | 63.2 | 63.5 |
| 4 | 1 1/4" | 180.0 | 84.0 | 66.0 |
| 5 | 1 1/2" | 190.6 | 82.1 | 72.6 |
| 6 | 2" | 198.6 | 94.1 | 84.7 |
| 7 | 2 1/2" | 210.0 | 109.2 | 83.9 |
| 8 | 3" | 253.2 | 132.8 | 92.5 |
| 9 | 4" | 272.2 | 160.4 | 93.2 |
| 10 | 5" | 354.0 | 200.0 | 115.5 |
| 11 | 6" | 422.0 | 258.0 | 112.0 |
| All dimensions are in mm ; dimensions subject to change without notice please. | ||||

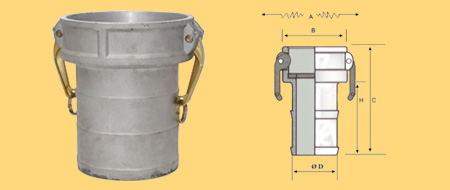

Camlock Hose Coupler C
Camlock Hose Coupler C
| Serial No. | Camlock Size | A | B | C | H | ØD |
| 1 | 1/2" | 114.0 | 52.0 | 84.0 | 52.3 | 15.2 |
| 2 | 3/4" | 113.9 | 52.0 | 84.0 | 52.3 | 20.9 |
| 3 | 1" | 120.5 | 60.2 | 106.9 | 60.9 | 26.1 |
| 4 | 1 1/4" | 177.0 | 80.0 | 112.0 | 57.0 | 34.6 |
| 5 | 1 1/2" | 189.4 | 83.6 | 112.5 | 68.5 | 39.7 |
| 6 | 2" | 193.7 | 95.0 | 129.6 | 79.7 | 52.5 |
| 7 | 2 1/2" | 211.0 | 106.8 | 139.2 | 87.0 | 65.9 |
| 8 | 3" | 241.9 | 133.5 | 162.1 | 104.7 | 77.1 |
| 9 | 4" | 263.0 | 158.0 | 163.0 | 93.0 | 102.5 |
| 10 | 5" | 336.0 | 200.0 | 191.5 | 125.0 | 131.2 |
| 11 | 6" | 402.7 | 229.3 | 230.0 | 165.0 | 149.6 |
| All dimensions are in mm ; dimensions subject to change without notice please. | ||||||

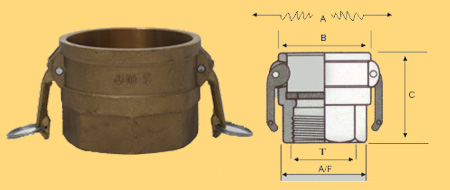

Camlock Female Coupler D
Camlock Female Coupler D
| Serial No. | Camlock Size | A | B | C | A/F |
| 1 | 1/2" | 105.0 | 46.0 | 42.5 | 25.5 |
| 2 | 3/4" | 115.0 | 53.0 | 46.0 | 32.0 |
| 3 | 1" | 133.3 | 61.3 | 55.3 | 38.5 |
| 4 | 1 1/4" | 177.0 | 80.0 | 63.0 | 50.0 |
| 5 | 1 1/2" | 188.0 | 92.3 | 66.0 | 54.5 |
| 6 | 2" | 198.4 | 100.7 | 75.7 | 66.5 |
| 7 | 2 1/2" | 211.3 | 111.7 | 82.3 | 81.5 |
| 8 | 3" | 244.2 | 134.4 | 87.2 | 94.5 |
| 9 | 4" | 280.0 | 163.0 | 100.9 | 124.0 |
| 10 | 5" | 306.4 | 192.0 | 106.3 | 153.5 |
| 11 | 6" | 418.9 | 245.2 | 113.0 | 185.0 |
| All dimensions are in mm ; dimensions subject to change without notice please. | |||||

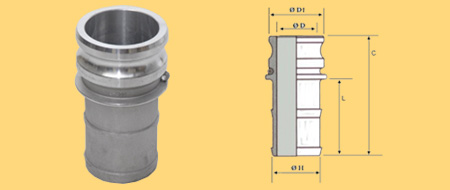

Camlock Hose Adaptor E
Camlock Hose Adaptor E
| Serial No. | Camlock Size | ØD1 | C | ØH | ØD | L |
| 1 | 1/2" | 34.0 | 70.5 | 15.0 | 32.5 | 38.0 |
| 2 | 3/4" | 32.7 | 87.0 | 22.0 | 32.1 | 51.3 |
| 3 | 1" | 41.5 | 99.0 | 27.0 | 36.7 | 54.7 |
| 4 | 1 1/4" | 54.5 | 110.0 | 34.0 | 45.5 | 56.0 |
| 5 | 1 1/2" | 55.4 | 114.4 | 39.2 | 53.4 | 60.6 |
| 6 | 2" | 66.7 | 131.5 | 52.6 | 63.0 | 69.7 |
| 7 | 2 1/2" | 81.1 | 142.5 | 66.5 | 75.8 | 80.3 |
| 8 | 3" | 101.5 | 144.1 | 79.4 | 91.5 | 81.3 |
| 9 | 4" | 123.7 | 175.2 | 102.3 | 119.5 | 141.2 |
| 10 | 5" | 166.5 | 199.2 | 132.0 | 146.0 | 121.4 |
| 11 | 6" | 209.1 | 246.7 | 157.5 | 175.3 | 159.9 |
| All dimensions are in mm ; dimensions subject to change without notice please. | ||||||

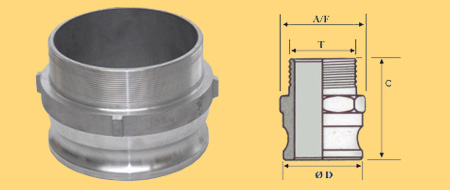

Camlock Male Adaptor F
Camlock Male Adaptor F
| Serial No. | Camlock Size | A/F | C | ØD |
| 1 | 1/2" | 34.0 | 49.0 | 32.0 |
| 2 | 3/4" | 32.5 | 55.0 | 32.1 |
| 3 | 1" | 40.0 | 66.0 | 36.7 |
| 4 | 1 1/4" | 48.0 | 77.0 | 45.5 |
| 5 | 1 1/2" | 55.5 | 76.8 | 53.4 |
| 6 | 2" | 65.0 | 86.6 | 63.0 |
| 7 | 2 1/2" | 81.0 | 99.5 | 75.8 |
| 8 | 3" | 92.5 | 100.0 | 91.5 |
| 9 | 4" | 120.5 | 113.3 | 119.5 |
| 10 | 5" | 156.0 | 130.4 | 146.0 |
| 11 | 6" | 179.5 | 139.8 | 175.8 |
| All dimensions are in mm ; dimensions subject to change without notice please. | ||||

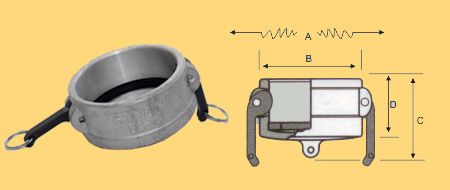

Camlock Dust Cap
Camlock Dust Cap
| Serial No. | Camlock Size | A | B | C | D |
| 1 | 1/2" | 117.0 | 60.0 | 46.0 | 38.0 |
| 2 | 3/4" | 117.0 | 60.0 | 46.0 | 38.0 |
| 3 | 1" | 135.0 | 69.0 | 51.0 | 41.0 |
| 4 | 1 1/4" | 177.0 | 80.0 | 54.0 | 44.0 |
| 5 | 1 1/2" | 149.0 | 87.0 | 57.0 | 47.0 |
| 6 | 2" | 159.0 | 97.0 | 65.0 | 54.0 |
| 7 | 2 1/2" | 207.0 | 111.0 | 70.0 | 54.0 |
| 8 | 3" | 253.0 | 137.0 | 70.0 | 59.0 |
| 9 | 4" | 278.0 | 162.0 | 74.0 | 61.0 |
| 10 | 5" | 305.0 | 189.0 | 75.0 | 62.0 |
| 11 | 6" | 413.0 | 260.0 | 85.0 | 71.0 |
| All dimensions are in mm ; dimensions subject to change without notice please. | |||||

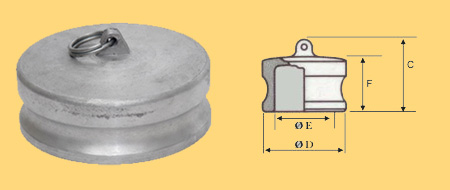

Camlock Dust Plug
Camlock Dust Plug
| Serial No. | Cam Groove Coupling Size | ØD | ØE | F | C |
| 1 | 1/2" | 32.6 | 14.0 | 29.0 | 37.0 |
| 2 | 3/4" | 32.6 | 19.0 | 29.0 | 37.0 |
| 3 | 1" | 36.5 | 24.0 | 32.0 | 42.0 |
| 4 | 1 1/4" | 45.4 | 27.0 | 39.0 | 51.0 |
| 5 | 1 1/2" | 53.3 | 36.0 | 41.0 | 51.0 |
| 6 | 2" | 63.0 | 45.0 | 49.0 | 60.0 |
| 7 | 2 1/2" | 75.8 | 57.5 | 46.0 | 58.0 |
| 8 | 3" | 92.0 | 71.0 | 53.0 | 64.0 |
| 9 | 4" | 119.4 | 80.0 | 53.0 | 66.0 |
| 10 | 5" | 146.0 | 86.0 | 54.0 | 67.0 |
| 11 | 6" | 176.0 | 86.0 | 54.0 | 68.0 |
| All dimensions are in mm ; dimensions subject to change without notice please. | |||||
Camlock Coupling Information To Be Supplied With Enquiry or Order
(1) Camlock Size i.e. ˝" or 1" & so on.
(2) Body material i.e. out of solid bar stock or of casting and grade thereof i.e. SS304 / SS316 & so on.
(3) Cam arm material i.e. stainless steel SS304/SS316 & so on.
(4) Seal material i.e. nitrite or silicone & so on.
(5) Quick Coupler style & configuration i.e. male thread or female or hose & type BSP or NPT.
(6) Adapter style & configuration.
(7) Working pressure in psi or kg/cm2.
(8) Temperature range.
(9) Application.
(10) Quantity in nos.
* Manufacture of other type & style undertaken for which please send old used specimen sample and details as indicated in min. information required while sending enquiry be sent.
